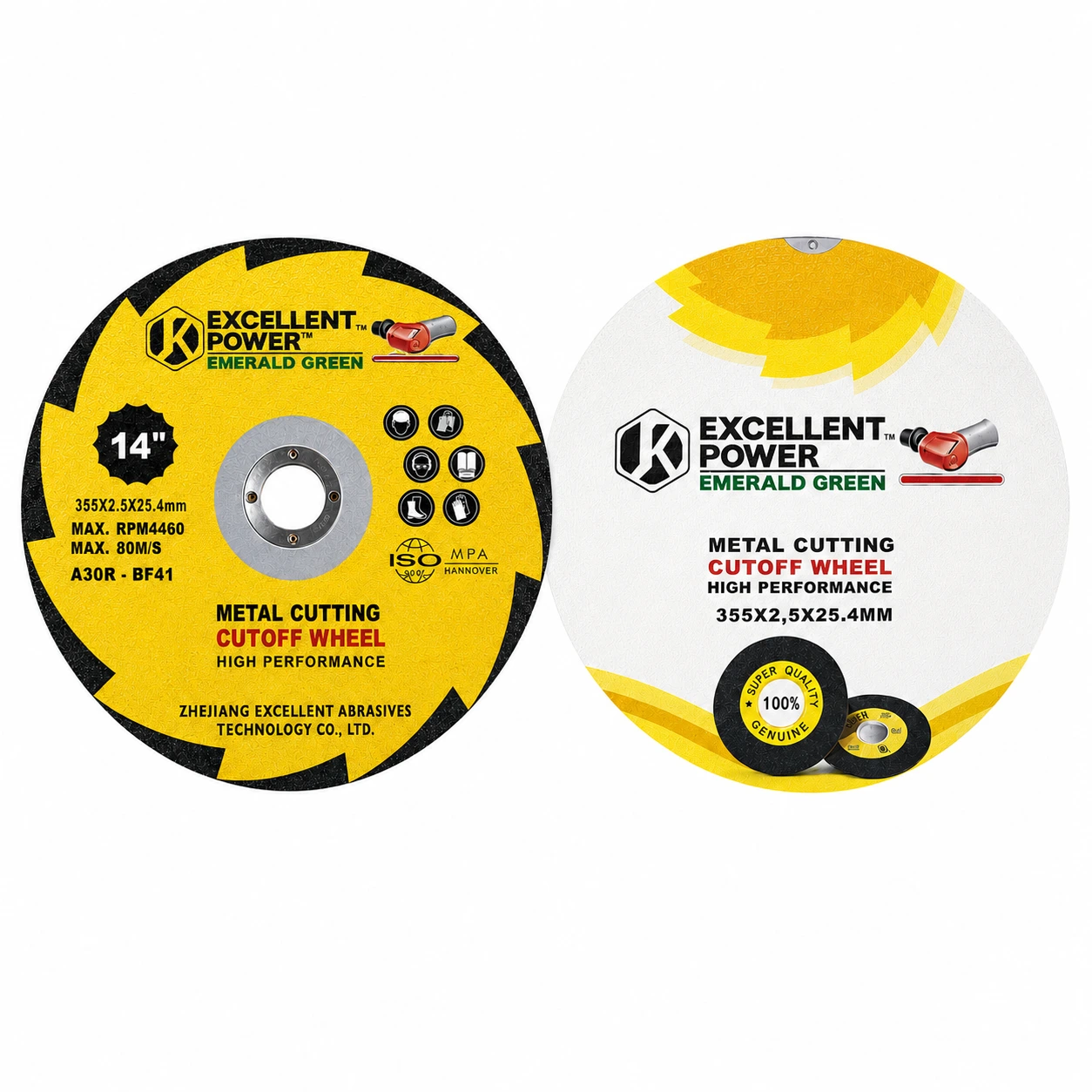

The Excellent Enterprises Metal Cutting Wheel 14 Inch 355mm is a production-class Type 41 flat resinoid bonded abrasive cutting disc designed for stationary bench-mounted chop saws, cut-off machines, and bar cutters operating at the 14-inch standard arbor size. At 355mm outer diameter × 3mm thickness × 25.4mm bore, it is the industry-standard cutting disc specification for heavy-duty metal cross-section cutting across India’s steel fabrication, structural erection, construction, and heavy engineering sectors — the consumable that every chop saw, bar cutter, and cut-off machine at the heart of Indian steel processing operations depends on for daily productive performance.
Scale of Application — Why 14-Inch Matters The 14-inch chop saw format is the dominant heavy-duty metal cutting machine in Indian fabrication workshops, construction sites, steel service centres, and rebar processing yards. Its 355mm wheel diameter enables deep, single-stroke cross-section cuts through:
- Structural steel angles, channels, I-beams, and hollow sections
- Solid steel bars up to 80–100mm diameter (depending on machine capacity)
- Steel pipes and tubes up to 4-inch nominal bore
- Rebar and TMT bars at all standard sizes from 8mm to 32mm
- Cast iron sections and alloy steel bars
At this scale of material cross-section, the demands placed on the cutting disc in terms of abrasive grain durability, bond strength, centrifugal burst resistance, and thermal management are substantially higher than for smaller angle grinder discs — requiring a disc engineered specifically for the sustained, high-load cutting events generated by chop saw operation.
Aluminum Oxide Grain — High-Load Cutting Performance The 14-inch cutting wheel uses high-purity fused aluminum oxide (Al₂O₃) abrasive grain in a coarser grit formulation optimised for the higher contact area and cutting forces encountered in chop saw operation versus angle grinder use. The grain’s controlled friability ensures that under the high normal force of a chop saw downstroke, fresh cutting grain faces are continuously exposed — preventing glazing (abrasive grain dulling without self-renewal) and maintaining cutting aggression throughout the disc’s service life.
The INOX-compatible grade available in the range contains less than 0.1% total iron, sulphur, and chlorine content — meeting the mandatory threshold for contamination-free cutting of stainless steel, where iron contamination from the abrasive disc would initiate rust nucleation at the cut face, compromising corrosion resistance and weld preparation cleanliness.
Phenolic Resinoid Bond — Optimised for Chop Saw Peripheral Velocity At 4,400 RPM (the standard chop saw operating speed), the 355mm disc reaches a peripheral velocity of 80–82 m/s — the upper operating range of standard resinoid bonded cut-off wheels. The thermosetting phenolic resin bond matrix in the Excellent Enterprises 14-inch wheel is formulated specifically for this velocity range, providing the bond hardness grade and porosity level required to:
- Resist centrifugal delamination at 4,400 RPM continuous operating speed
- Deliver controlled grain release at high cutting forces without premature disc wear
- Manage frictional heat generation at the disc–workpiece interface to prevent thermal damage to both disc and workpiece
Double Fiberglass Reinforcement — EN 12413 Burst Safety Two full layers of woven fiberglass reinforcement scrim are embedded within the disc bond matrix, providing the tensile hoop strength and fracture containment architecture required under EN 12413 safety standards for bonded abrasive products. In the event of disc fracture at operating speed — which generates fragment ejection velocities potentially exceeding 100 m/s — the fiberglass reinforcement layers contain fragments within the spark guard system, preventing operator injury from uncontained disc burst.
Core Technical Specifications:
- Outer Diameter: 355mm (14 inch)
- Thickness: 3.0mm
- Arbor Bore: 25.4mm (1 inch)
- Type: T41 Flat Profile
- Abrasive: Aluminum Oxide (Al₂O₃)
- Bond: Phenolic Resinoid
- Max. Operating Speed: 4,400 RPM / 80 m/s
- Reinforcement: Double Fiberglass Mesh
- Applicable Materials: Mild Steel, Carbon Steel, Cast Iron, Stainless Steel (INOX), Alloy Steel, Pipes, Bars, Angles, Structural Sections
- Standard Compliance: EN 12413, ISO 9001, ANSI B7.1
Target Users: Steel fabrication plants, rebar processing yards, structural steel erection contractors, pipe and tube fabricators, general engineering workshops, construction project material processing teams, and any industrial buyer in India requiring a reliable, EN12413-compliant 14-inch chop saw cutting disc for daily high-volume metal cross-section cutting with consistent cut quality and long disc service life.
