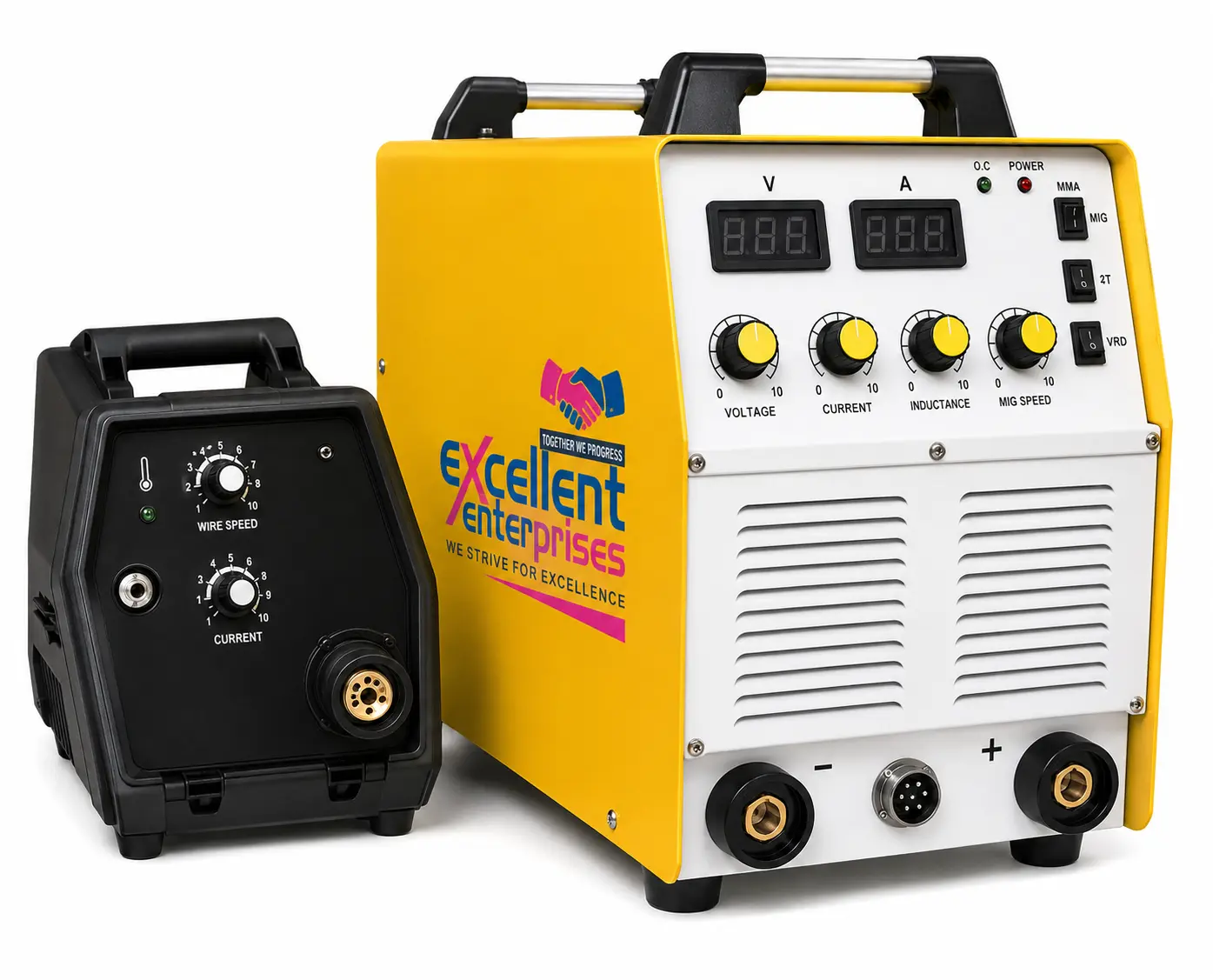

The Excellent Enterprises MIG-ARC-400 Three Phase IGBT Inverter Welding Machine is the heavy-production flagship of the MIG range — a full industrial platform for fabrication plants, shipyards, railway and pressure-vessel manufacturers and production welding cells where throughput, arc consistency and reliability drive output. It delivers 40–400A of constant-voltage power across MIG/MAG, Flux-Cored and MMA, fed by a separate high-capacity wire feeder on 380–415V three-phase supply.
Product Overview
A full-bridge IGBT constant-voltage power source maintains stable output across changing load for predictable weld quality shift after shift. A separate industrial wire feeder (1–25 m/min) with 5-pin interconnection can be positioned away from the power source for access around large assemblies — a practical advantage on shipbuilding and structural work.
Key Features
- 40–400A CV output across MIG/MAG/FCAW/MMA.
- Separate high-capacity feeder, 1–25 m/min, 5-pin remote placement.
- 0.8–1.6mm wire — mild steel, stainless, aluminium, flux-cored.
- Instant-start + ball-burnback control for clean initiation/restart.
- 2T/4T torch control + digital parameter display.
- 0.93 power factor, 80–85% efficiency, 60% duty.
- Heavy-duty cooling + overload/overvoltage/overcurrent protection.
Benefits
True multi-process capability removes equipment duplication; high deposition + remote feeder raise productivity on big workpieces; CV stability cuts rework. IGBT efficiency controls running cost in continuous production.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MIG-ARC-400 |
| Technology | Full-Bridge IGBT Inverter (CV) |
| Processes | MIG / MAG / FCAW / MMA |
| Input Voltage | AC 380–415V ±15% |
| Phase | Three Phase |
| Output Current | 40A – 400A |
| Output Voltage | 15V – 38V |
| Wire Feed Speed | 1 – 25 m/min |
| Wire Diameter | 0.8mm – 1.6mm |
| Compatible Wire | Mild Steel / Stainless / Aluminium / Flux-Cored |
| Wire Feeder | Separate, 5-pin interconnection |
| Duty Cycle | 60% (DATA REQUIRED: confirm rated amperage) |
| Efficiency | 80–85% |
| Power Factor | 0.93 |
| Torch Control | 2T / 4T · Digital display |
Materials & Construction
Heavy industrial power-source enclosure + separate feeder unit; digital control; cooling sized for 400A production duty. (DATA REQUIRED: weight/dimensions of source + feeder, roll type.)
Applications
Heavy structural steel; pressure-vessel manufacturing; shipbuilding & offshore; railway coach manufacturing; bridge steel; heavy-equipment OEM; boiler manufacturing; industrial fabrication plants; production welding cells; EPC projects.
Industries Served
Shipbuilding · pressure-vessel/boiler · railway · heavy structural/bridge · heavy-equipment OEM · fabrication plants · EPC.
Buying Considerations
- In-box package (key): confirm separate feeder, MIG torch (+length), interconnection cable length, gas regulator + hose, spool size, roll type (DATA REQUIRED) — the heavy-MIG buyer’s core comparison.
- Aluminium wire: feasible (0.8–1.6mm); confirm roll/liner/torch setup for aluminium.
- Supply: 380–415V three-phase; confirm input current/KVA + breaker.
- MIG-400 vs MIG-250: step down for medium-duty/integrated-feeder work.
Why Choose Excellent Enterprises
ISO 9001:2015-certified, ISI-compliant supplier, 500+ clients since 1997 (29+ years). Genuine, warranty-backed machines, bulk pricing, PAN-India delivery, GST invoicing, OEM/private-label & export support, 30-minute quote response.
Maintenance
Maintain liner/contact tip and 4-roll tension/grooves; inspect interconnection cable and torch; clear dust from source + feeder vents; keep wire dry; check gas hose/connections.
Safety Considerations
Helmet, FR clothing, gloves; fume extraction (stainless/flux-cored); secure cylinder; earthing by a qualified electrician given high three-phase input; isolate before service. Follow IEC 60974-1.
Frequently Asked Questions
What is the MIG-ARC-400 used for? Heavy production MIG/MAG/FCAW/MMA — shipbuilding, pressure vessels, railway, bridge and structural fabrication — on 380–415V three-phase. Is the feeder separate? Yes — a separate high-capacity feeder with 5-pin interconnection for flexible placement. What wire fits? 0.8–1.6mm mild-steel, stainless, aluminium and flux-cored. Does it weld aluminium? It accepts aluminium MIG wire; confirm the aluminium roll/liner/torch setup. MIG-400 or MIG-250? MIG-400 for heavy continuous production with a remote feeder; MIG-250 for medium-duty. What’s the duty cycle? 60% (confirm rated amperage), with heavy-duty cooling for production.
Conclusion & RFQ CTA
The MIG-ARC-400 is a heavy-production 400A three-phase multi-process MIG welder with a separate feeder — from an ISO 9001:2015 supplier with 29+ years’ experience. Request a quote for price, the full in-box package, bulk slabs and PAN-India delivery.
